Support Equipment

IVECO 6x6 heavy off-road cab chassis

Also known as
  • IVECO 6x6 commercial truck chassis
  • IVECO 6x6 truck chassis
  • IVECO Trakker 6x6
  • IVECO T-Way 6x6
  • IVECO T-Way AD380T45W

IVECO 6x6 heavy off-road cab chassis describes a family-style launcher support entry rather than one fixed model. IVECO sources place Trakker in the older heavy-duty on/off-road range and describe T-Way as its successor, while the current T-Way AD380T45W 6x6 cab-chassis sheet gives a representative Cursor 13-powered, 32,000 kg GVM, 60,000 kg GCM data point. Army Recognition ties IVECO 6x6 commercial truck chassis to the Fateh-110 launcher role.

IVECO 6x6 heavy off-road cab chassis, 6x6 heavy off-road commercial cab chassis launcher base, Support Equipment
Image source: Iveco Trakker GTF 6x6.jpg
Profile / Specs

Profile

Origin
Italy
Built by
IVECO
Type
6x6 heavy off-road commercial cab chassis launcher base

Specifications

Representative model
IVECO T-Way AD380T45W 6x6 cab chassis
Drive
6x6 all-wheel drive
Configuration
Cab chassis
Engine
Cursor 13, 12.9 L diesel
Power
450 hp (331 kW) at 1,900 rpm
Torque
2,200 Nm at 1,000 rpm
Transmission
Hi-Tronix 16TX 2240 TO 16-speed automated manual
Transfer case
TC 2200 two-speed transfer case
GVM
32,000 kg
GCM
60,000 kg
Wheelbase
4,500 mm standard; 3,800 mm and 4,200 mm optional
Chassis
Steel frame, 309 x 80 x 10 mm
Chassis Identity

The IVECO chassis reference is best read as a heavy off-road 6x6 cab-chassis identity, not proof of one exact IVECO model on every launcher. IVECO's older Trakker line included 6x6 rigid heavy-duty on/off-road trucks, and IVECO later described T-Way as the successor to Trakker. The T-Way AD380T45W figures on this page are representative current 6x6 cab-chassis specifications because the launcher source names an IVECO 6x6 commercial truck chassis without giving a precise model code.

Representative data point

IVECO T-Way AD380T45W 6x6 cab chassis with Cursor 13 power, 16-speed Hi-Tronix transmission, 32,000 kg GVM, and 60,000 kg GCM.

Launcher relationship

Army Recognition identifies IVECO 6x6 commercial truck chassis as one of the chassis types associated with the Fateh-110's single-rail launcher configuration.

Sources: IVECO T-Way 6x6 Cab Chassis AD380T45W; IVECO T-Way press kit; IVECO Trakker Tip-Ex press release; Army Recognition containerized Fateh-110 article.

Launched Munitions

Army Recognition identifies IVECO 6x6 commercial truck chassis as one of the chassis types associated with the Fateh-110 family.

Launched itemItem typeLaunch evidence
Fateh-110 / Fateh-family ballistic missile, Short-range ballistic missile, ArtilleryFateh-110 / Fateh-family ballistic missileShort-range ballistic missile

Army Recognition says the Fateh-110 is mounted on Mercedes-Benz or IVECO 6x6 commercial truck chassis with a single launch rail.

Sources: Army Recognition containerized Fateh-110 article

Truck-chassis launcher context

The same Army Recognition article also describes a containerized Fateh-110 concept on a standard truck chassis, but it does not identify that containerized vehicle as this exact IVECO chassis.

Sources: Army Recognition containerized Fateh-110 article

Timeline

IVECO 6x6 heavy off-road cab chassis Key Events

  1. Trakker presented as heavy off-road truck

    IVECO described the new Trakker as a heavy-duty off-road truck for challenging and uneven terrain, using Cursor 13 power and 16-speed gearbox options.

    Sources: IVECO Johannesburg 2013 Trakker and HD9 release

  2. Trakker range includes 6x6 rigid configuration

    IVECO UK described Trakker as a 19- to 72-tonne heavy-duty on/off-road range available in 4x4, 6x4, 6x6, 8x4, and 8x8 rigid configurations.

    Sources: IVECO Trakker Tip-Ex press release

  3. T-Way succeeds Trakker

    IVECO launched T-Way as the heavy off-road truck taking over from Trakker, with all-wheel-drive 6x6 versions and 4.0, 4.2, and 4.5 m wheelbase options.

    Sources: IVECO T-Way press kit

  4. Australian T-Way AD 6x6 details published

    IVECO Australia listed the T-Way AD 6x6 with a Cursor 13 engine rated at 450 hp and 2,200 Nm, a standard 16-speed Hi-Tronix transmission, hub reduction, differential locks, and a two-speed transfer case.

    Sources: IVECO launches rugged T-Way off-road range

Media

IVECO 6x6 heavy off-road cab chassis Videos

IVECO 6x6 heavy off-road cab chassis Images

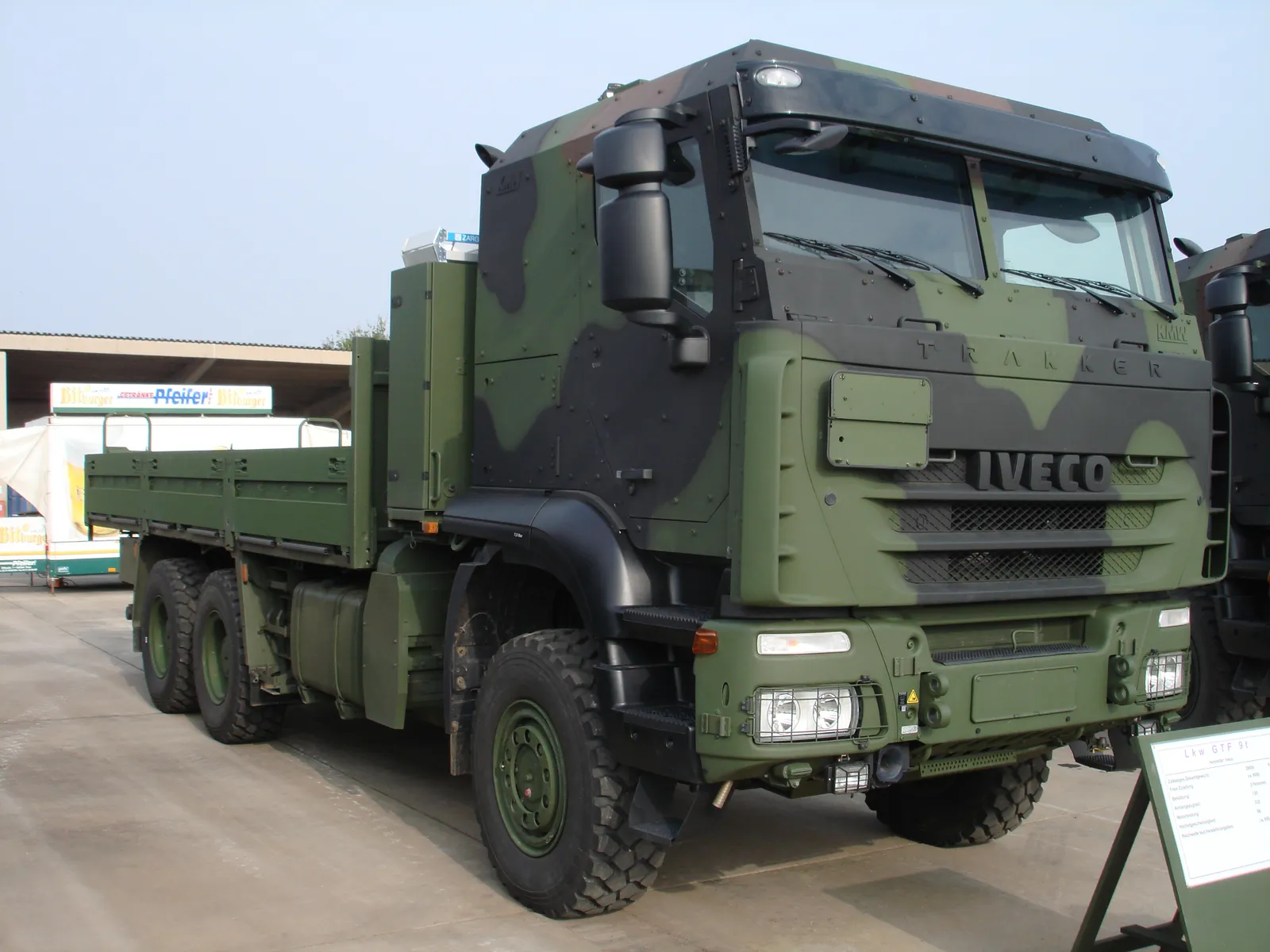

IVECO 6x6 heavy off-road cab chassis, 6x6 heavy off-road commercial cab chassis launcher base, Support Equipment - view 1
Source: Iveco Trakker PolishDSC01281.JPG

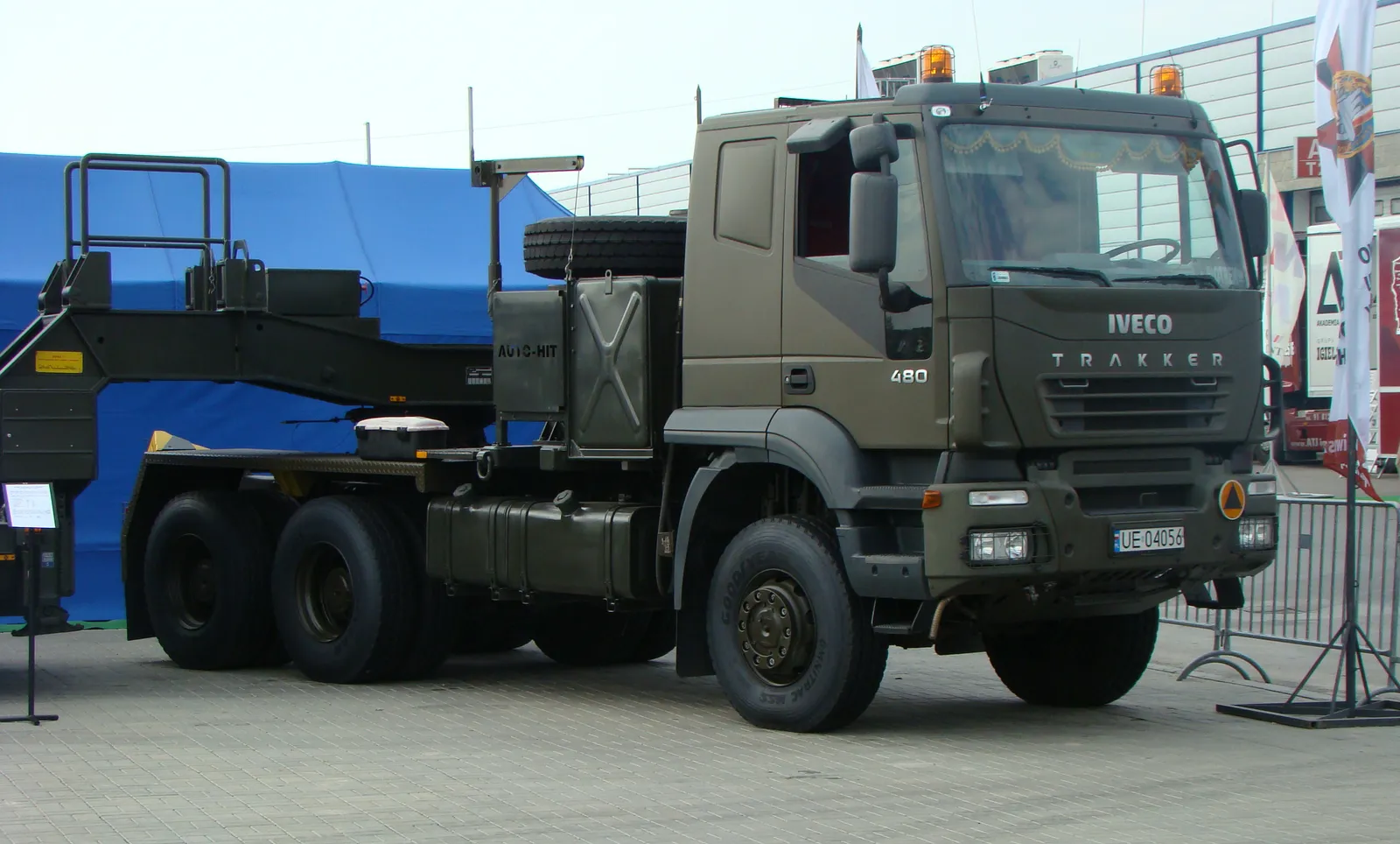

IVECO 6x6 heavy off-road cab chassis, 6x6 heavy off-road commercial cab chassis launcher base, Support Equipment - view 2
Source: VJTF Convoy - Iveco Trakker 450 6x6 swap body German Army.webp

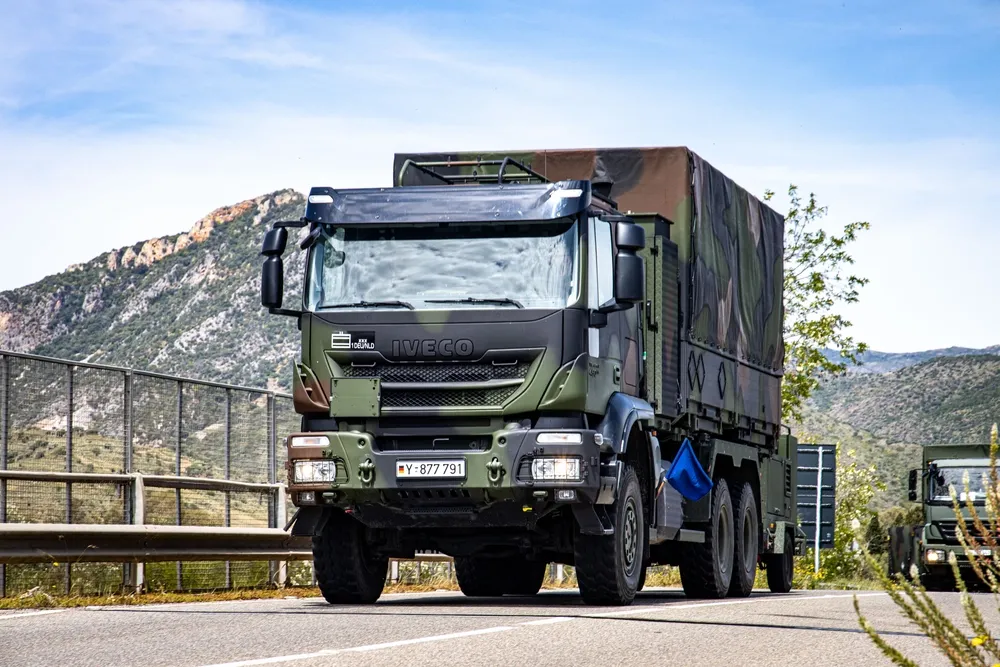

IVECO 6x6 heavy off-road cab chassis, 6x6 heavy off-road commercial cab chassis launcher base, Support Equipment - view 3
Source: Bangladesh Army Iveco Trakker 420 6X6 truck

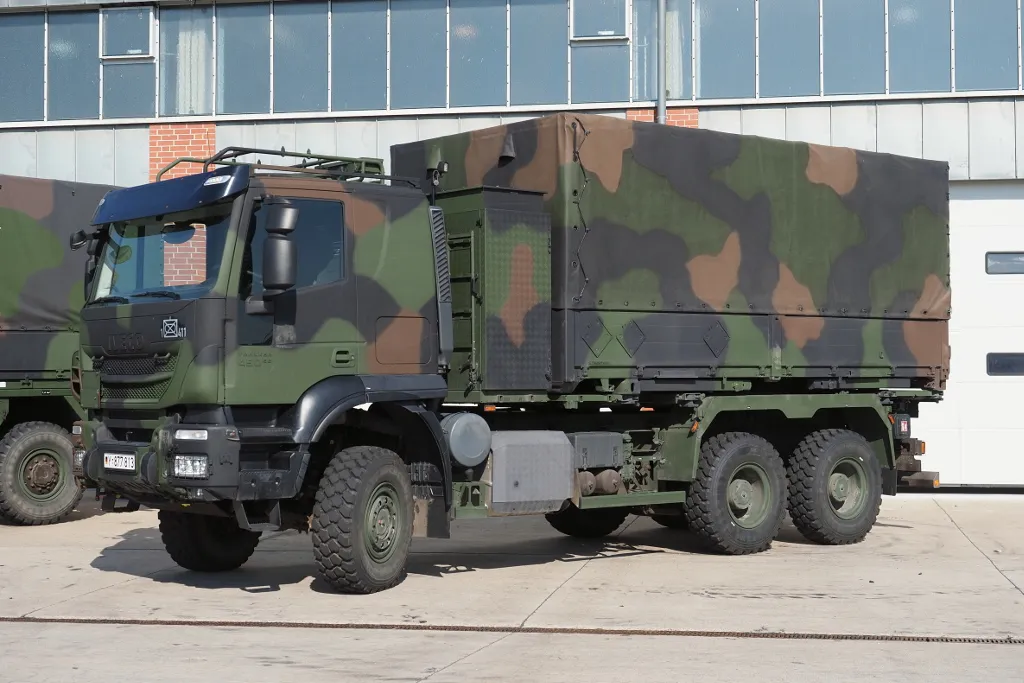

IVECO 6x6 heavy off-road cab chassis, 6x6 heavy off-road commercial cab chassis launcher base, Support Equipment - view 4
Source: Iveco Trakker 450 6x6 swap body PzGrBat 411 2024
Related Weapon Systems
Mercedes-Benz truck 2031, 6x6 truck chassis launcher base, Support EquipmentSupport EquipmentMercedes-Benz truck 20316x6 truck chassis launcher baseMercedes-Benz truck 2031 is a modified 6x6 commercial truck chassis identified in open sources as a launcher base for Iran's Fateh-110 short-range ballistic missile. Army Recognition describes the Fateh-110 on a modified Mercedes-Benz 2031 with one front axle, two rear axles, four launch stabilizers, and a single rail running along the chassis; CSIS separately classifies the Fateh-110 as a road-mobile solid-propellant missile.
Mercedes-Benz Zetros, High-mobility military logistics truck, Support EquipmentSupport EquipmentMercedes-Benz ZetrosHigh-mobility military logistics truckMercedes-Benz Zetros is a German high-mobility truck family used for military logistics, support, and mission-system carrier roles. Mercedes-Benz Defence Trucks lists 4x4, 6x4, 6x6, and 8x8 platform configurations with OM 460 inline-six diesel power, heavy-duty off-road driveline features, protected-cab options, and production centered on the Mercedes-Benz truck plant at Woerth am Rhein; German-backed deliveries have placed Zetros trucks in Ukrainian military service during the 2014 Russia-Ukraine War.
Kia Medium Tactical Vehicle, 4x4 and 6x6 medium tactical truck family, Support EquipmentSupport EquipmentKia Medium Tactical Vehicle4x4 and 6x6 medium tactical truck familyThe Kia Medium Tactical Vehicle is a South Korean tactical truck family covering 4x4 cargo, 6x6 cargo, and 6x6 bulletproof cargo branches. Kia presents it as the successor to older Republic of Korea Army 2.5-tonne and 5-tonne standard military trucks, with all-wheel drive, automatic transmission, central tire inflation, run-flat tire options, and logistics or troop-transport roles rather than a directly documented conflict-use record.
Pinzgauer 6x6, 6x6 high-mobility military utility vehicle, Support EquipmentSupport EquipmentPinzgauer 6x66x6 high-mobility military utility vehicleThe Pinzgauer 6x6 is the six-wheel branch of the Austrian Steyr-Puch high-mobility all-terrain utility-vehicle family, later continued through diesel 718 and British-supported Vector protected-patrol forms. Its conflict record in Ukraine is best treated as light protected mobility and support equipment: donor and private channels delivered Pinzgauer and Vector vehicles for Ukrainian units, while open-source loss trackers later documented Ukrainian Pinzgauer Vector 718 losses.
TD-STAMP, Lightweight tri-sensor EO/IR payload with laser designator, Aircraft & UAVsAircraft & UAVsTD-STAMPLightweight tri-sensor EO/IR payload with laser designatorTD-STAMP is Controp Precision Technologies' Israeli lightweight tri-sensor EO/IR payload for small UAS and VTOL aircraft. Public 2011 launch coverage described a gyro-stabilized payload of about 5 kg with a CCD/day channel, cooled FLIR, and laser designator for compact surveillance and target-designation missions; later reporting places it within Controp's broader STAMP miniature-payload family rather than proving independent conflict use.
