ILLUM 545C

Also known as

84 mm ILLUM 545C
Carl-Gustaf ILLUM 545C
Carl Gustaf ILLUM 545C

ILLUM 545C is Saab's 84 mm Carl-Gustaf illumination round for the M4 launcher. Saab describes the parachute-suspended munition as a night-capable support round with preset ranges from 300 to 2,100 metres, a 400 to 500 metre illuminated area, and roughly 30 seconds of light.

ILLUM 545C, 84 mm illumination round, Munitions

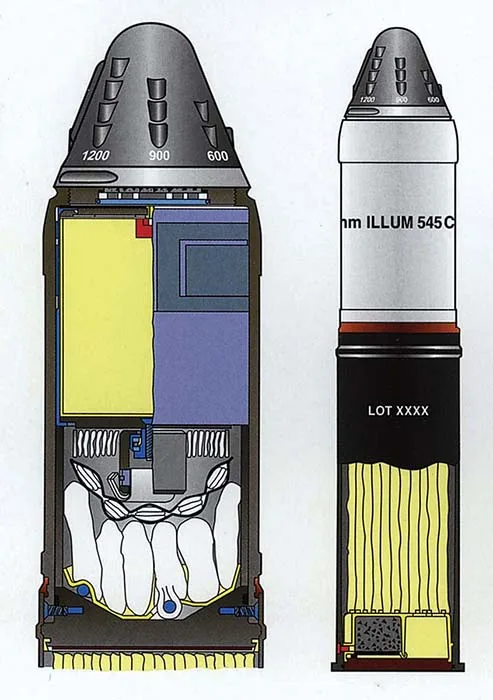

Image source: Saab Carl-Gustaf M4 product page

Profile / Specs

Profile

Origin: Sweden
Built by: Saab
Type: 84 mm illumination round

ammunition illumination recoilless rifle

Specifications

Caliber: 84 mm
Complete round weight: 3.1 kg
Effective range: 300-2,100 m
Illuminated area: 400-500 m diameter
Burn time: 30 s
Muzzle velocity: 260 m/s
Range settings: Seven preset ranges

Illumination Data

Saab describes ILLUM 545C as a parachute-supported 84 mm round for night battlefield illumination.

Feature	Value	Note
Weight	3.1 kg	Complete round mass.
Range	300-2,100 m	Seven preset range settings.
Illuminated area	400-500 m diameter	Night battlefield coverage.
Burn time	30 s	Light duration.
Muzzle velocity	260 m/s	Launch velocity.

Firing Weapon

Saab places ILLUM 545C in the Carl-Gustaf 84 mm ammunition family for the M4 launcher.

Carrier

Carrier type

Carriage evidence

Carl Gustaf recoilless rifle, Recoilless rifle, Infantry Weapons

Carl Gustaf recoilless rifle

84 mm recoilless rifle

Saab lists ILLUM 545C as Carl-Gustaf ammunition and describes it as a battlefield illumination round for the family.

Sources: Saab Carl-Gustaf M4 product page, Saab Ground Combat Systems Handbook 2026
