eOpic-5

Also known as

eOpic 5
Threod eOpic-5
Threod eOpic 5
EOPIC-5

eOpic-5 is a Threod Systems 1.1 kg five-inch electro-optical and infrared payload for small unmanned aircraft. Threod describes it as a dual-axis gyro-stabilized ISR sensor with Full HD daylight video, low-light/NIR capability, a thermal channel, onboard target and scene tracking, geo-pointing, GPS L1/Galileo/SBAS support, and STANAG 4609 metadata; it is the integrated ISR payload listed for Eos C VTOL.

eOpic-5, Two-axis gyro-stabilized EO/IR payload, Support Equipment

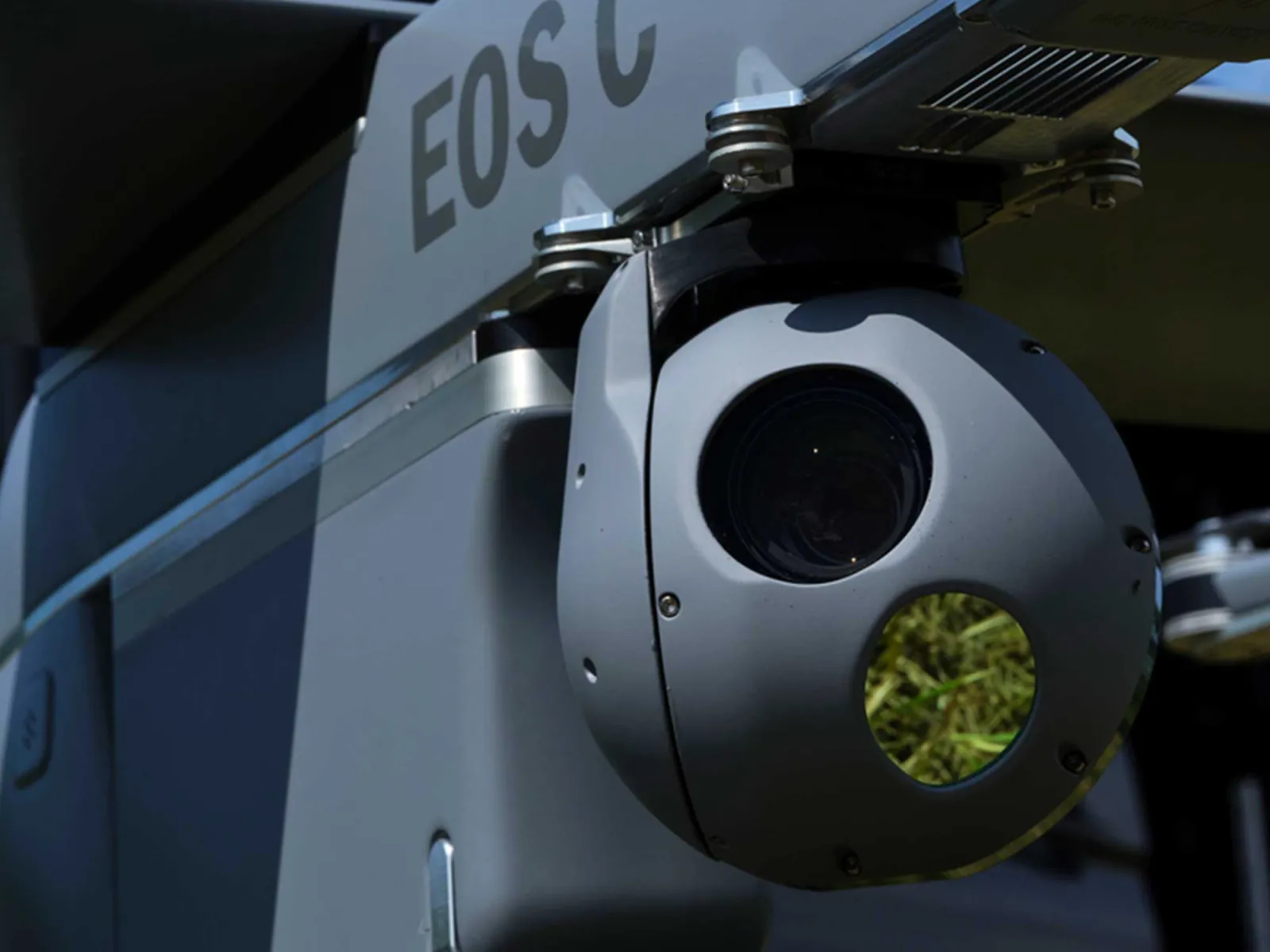

Image source: eOpic-5

Profile / Specs

Profile

Origin: Estonia
Built by: Threod Systems
Type: Two-axis gyro-stabilized EO/IR payload
Designer: Threod Systems
Produced: First delivered in 2021; current Threod electro-optical payload product line

Specifications

Role: Electro-optical and infrared ISR payload for unmanned aircraft
Weight: 1.1 kg
Stabilization: Two-axis gyro-stabilized payload
Navigation input: GPS L1, Galileo, and SBAS
Visible camera: Full HD daylight camera, 1920 x 1080 resolution, 63.7 to 2.3 degree field of view, 30x optical zoom, and 3x digital zoom
Visible-camera DRI: Human: 14 km / 6 km / 2.5 km; vehicle: 22 km / 12 km / 6 km
Thermal imager: LWIR thermal channel, 640 x 512 resolution, 18 degree field of view, and 8x digital zoom
Thermal-imager DRI: Human: 1,280 m / 320 m / 160 m; vehicle: 3,850 m / 950 m / 295 m
Onboard functions: Automatic target tracking, scene tracking, geo-pointing, picture-in-picture, image enhancement, recording, replay, and video export
Video: 1920 x 1080 at 30 fps, H.264 encoding, MPEG-TS stream, and STANAG 4609 KLV metadata
Aircraft relationship: Integrated payload listed for Eos C VTOL

Sensor And Mission-Control Features

Threod presents eOpic-5 as the lightest member of its current eOpic electro-optical payload line, with the five-inch unit focused on ISR missions from small unmanned aircraft.

Sensor stack

The payload combines a Full HD daylight camera with low-light/NIR mode and an LWIR thermal imager in a two-axis stabilized housing.

Navigation and metadata

The official data lists GPS L1, Galileo, SBAS, geo-pointing, georeferenced imagery, MPEG-TS video, and STANAG 4609 KLV metadata.

Operator tools

Threod's mission software adds scan patterns, geofencing, aircraft monitoring, video footprint display, payload fail-safes, live sharing, archive access, and a built-in mission simulator.

Integrated Aircraft

Threod lists eOpic-5 as the payload for Eos C VTOL ISR missions, and a Threod field article describes Eos C VTOL training use with eOpic-5 for real-time tracking and reconnaissance.

Carrier

Carrier type

Carriage evidence

Eos C VTOL, Electric VTOL unmanned aircraft system, Aircraft & UAVs

VTOL unmanned aircraft

Threod says Eos C VTOL is equipped with eOpic-5 for ISR missions, combining the stabilized payload with aircraft-specific software.

Sources: Eos C VTOL, From the Field: EOS C VTOL

Timeline

eOpic-5 Key Events

Jan 1, 2021
First eOpic-5 delivery
Threod's company timeline lists the first eOpic-5 delivery in 2021.
Sources: About Threod Systems

Media

eOpic-5 Images

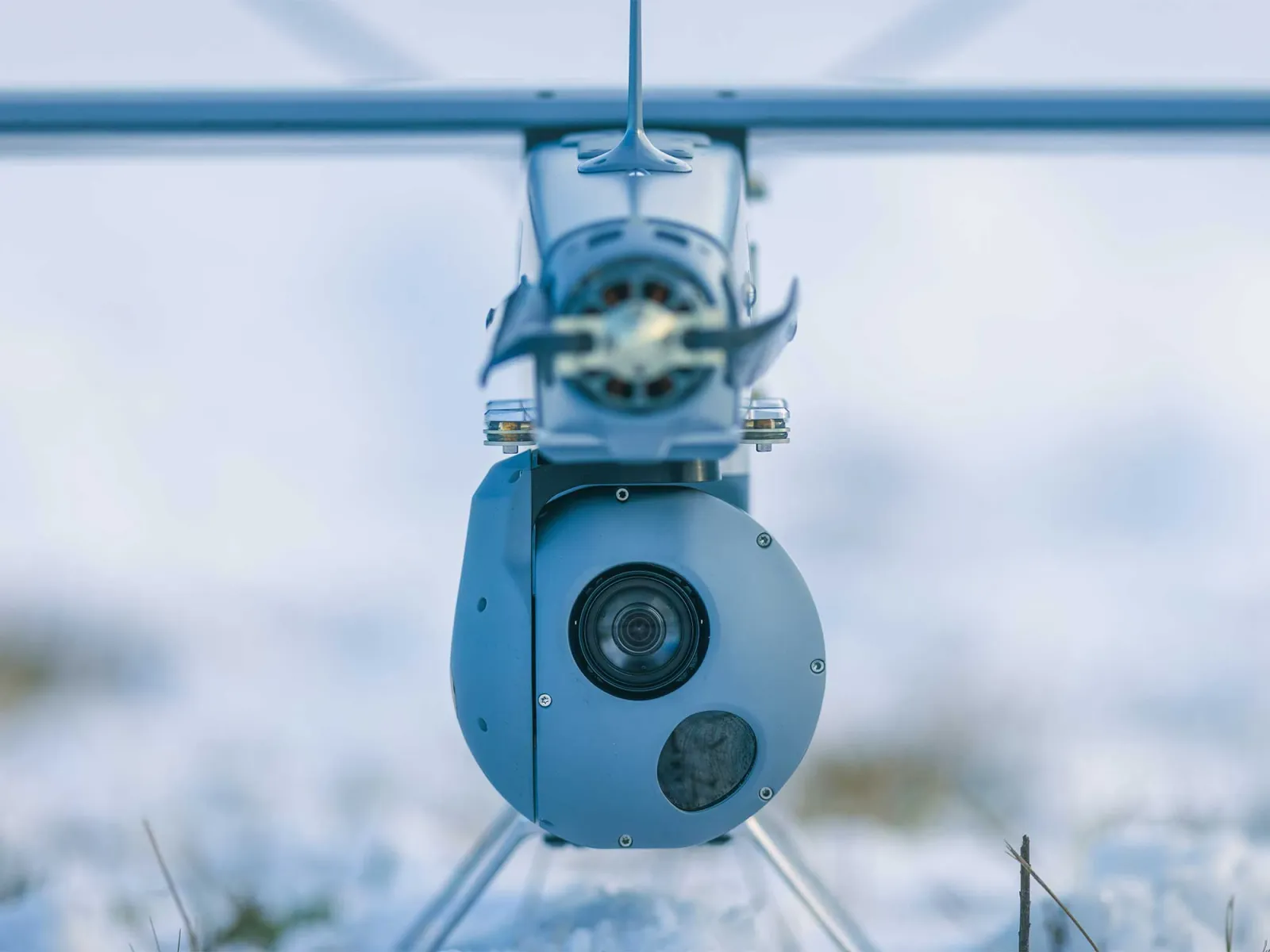

eOpic-5, Two-axis gyro-stabilized EO/IR payload, Support Equipment - view 1 — Source: eOpic-5

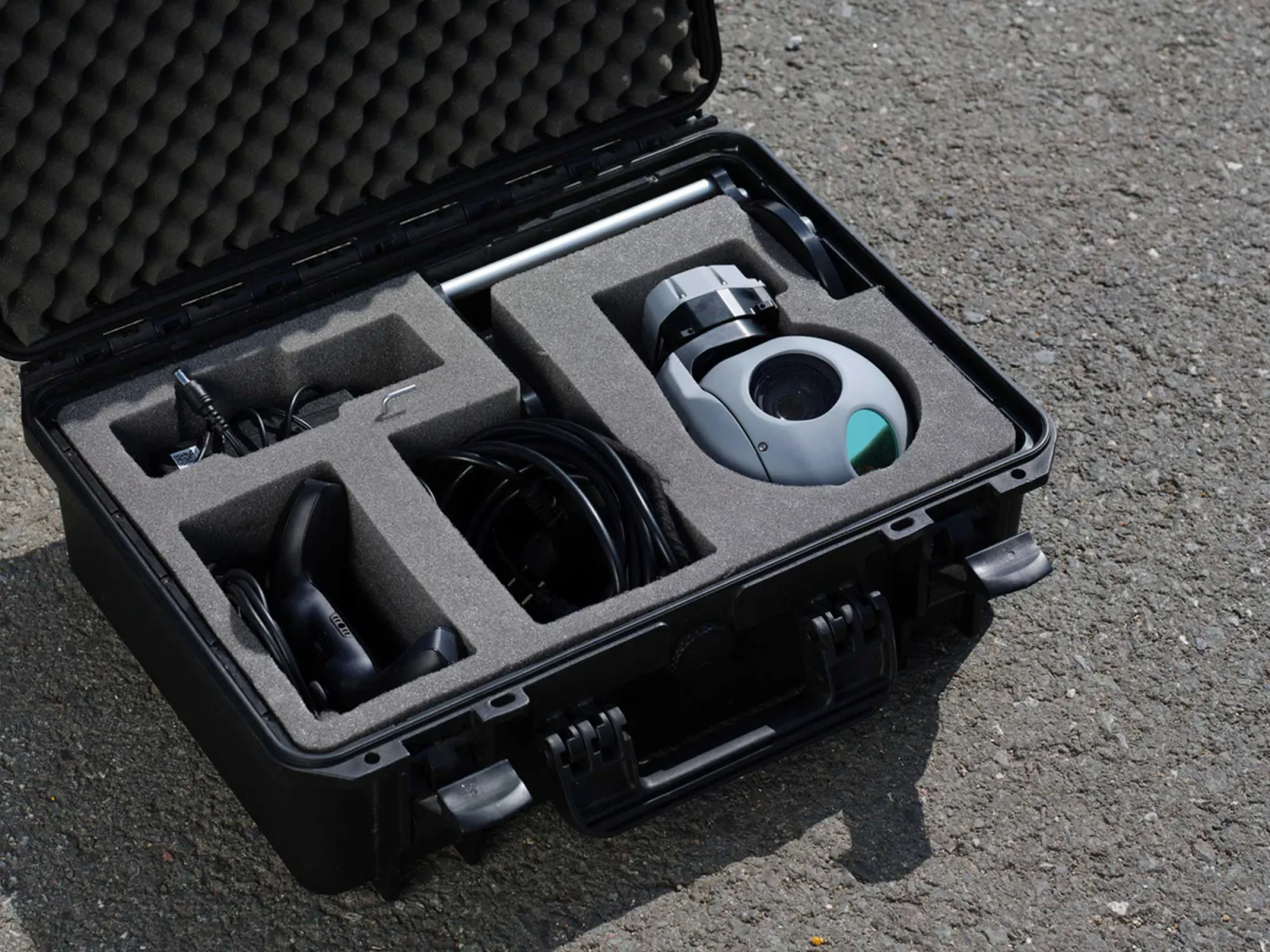

eOpic-5, Two-axis gyro-stabilized EO/IR payload, Support Equipment - view 2 — Source: eOpic-5

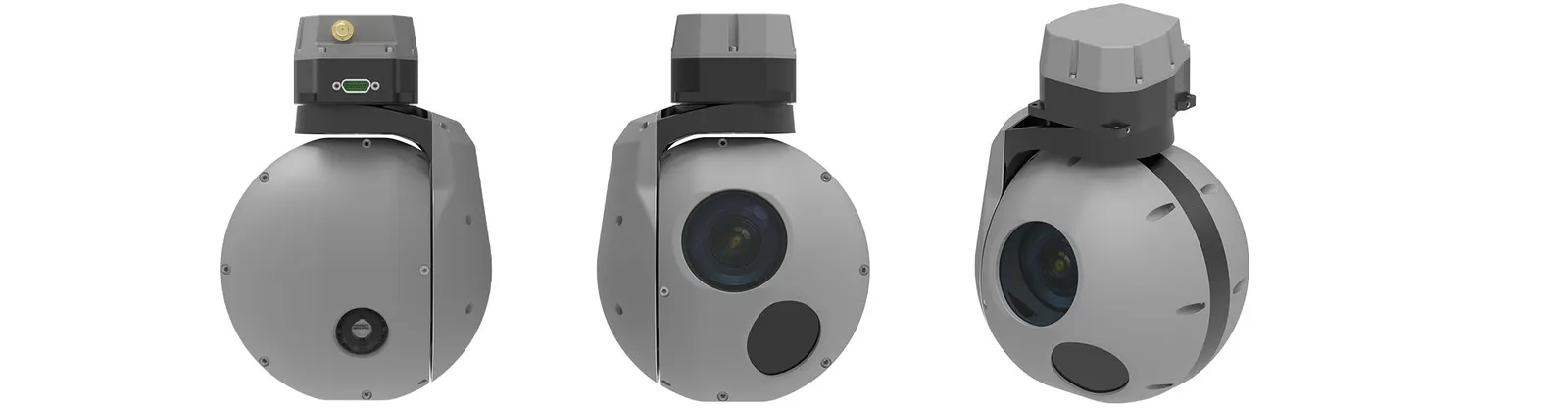

eOpic-5, Two-axis gyro-stabilized EO/IR payload, Support Equipment - view 3 — Source: eOpic-5

Related Weapon Systems

Eos C VTOL, Electric VTOL unmanned aircraft system, Aircraft & UAVs

Aircraft & UAVsEos C VTOLElectric VTOL unmanned aircraft systemEos C VTOL is a Threod Systems electric vertical-takeoff unmanned aircraft system used for tactical ISR, target acquisition, and artillery-fire adjustment. The Estonian aircraft combines fixed-wing cruise with VTOL launch and recovery, an eOpic-5 EO/IR payload, encrypted line-of-sight communications, GNSS-denied navigation features, and documented Ukrainian wartime use after Lithuanian and Ukrainian crowdfunding purchases.

EO/IR with Laser Pointer, Electro-optical/infrared sensor payload with laser pointer, Aircraft & UAVs

Aircraft & UAVsEO/IR with Laser PointerElectro-optical/infrared sensor payload with laser pointerEO/IR with Laser Pointer is Aeronautics' electro-optical and infrared sensor payload listing for the Orbiter 2 ISR mini-UAS, not a standalone aircraft or munition. Official product material places the payload beside ELINT, COMINT, EW, ATR, VMD, onboard tracker, and communication-jammer options, while independent upgrade coverage describes the Orbiter 2 payload set as including an electro-optical payload with a laser pointer.

SPEED-ER, Stationary multispectral EO/IR long-range observation system, Electronic Warfare

Electronic WarfareSPEED-ERStationary multispectral EO/IR long-range observation systemSPEED-ER is Controp Precision Technologies' Israeli extended-range multispectral EO/IR surveillance system for stationary, mast, tower, and fixed/mobile land installations. Public Controp, defense-reporting, and U.S. market-survey sources describe a gyro-stabilized visible, MWIR thermal, and SWIR sensor package used for long-range coastal, border, vessel-traffic, force-protection, targeting, and C-UAS observation; no direct conflict-use record is attached here.

TD-STAMP, Lightweight tri-sensor EO/IR payload with laser designator, Aircraft & UAVs

Aircraft & UAVsTD-STAMPLightweight tri-sensor EO/IR payload with laser designatorTD-STAMP is Controp Precision Technologies' Israeli lightweight tri-sensor EO/IR payload for small UAS and VTOL aircraft. Public 2011 launch coverage described a gyro-stabilized payload of about 5 kg with a CCD/day channel, cooled FLIR, and laser designator for compact surveillance and target-designation missions; later reporting places it within Controp's broader STAMP miniature-payload family rather than proving independent conflict use.

Orbiter 2 EW payload, Electronic warfare payload option, Electronic Warfare

Electronic WarfareOrbiter 2 EW payloadElectronic warfare payload optionThe Orbiter 2 EW payload is Aeronautics' electronic-warfare option for the Orbiter 2 ISR mini-UAS. Aeronautics lists EW in the same selectable payload set as COMINT, ELINT, ATR, VMD, onboard tracking, and a communication jammer, while specialist reporting and Netline product material place mini-UAS jamming in the C-Block Woodpecker Light payload class.

Nighttime optical payload with thermal imaging camera, Thermal-imaging optical payload with 35 mm athermal lens, 2-axis gyrostabilization, and 2.4x digital zoom, Support Equipment

Support EquipmentNighttime optical payload with thermal imaging cameraThermal-imaging optical payload with 35 mm athermal lens, 2-axis gyrostabilization, and 2.4x digital zoomThe nighttime optical payload with thermal imaging camera is Athlon Avia's stabilized night sensor option for the Furia tactical UAV family. Sources describe the A1-CM night payload as a thermal imager with a 35 mm athermal lens, 2-axis gyrostabilization, onboard video recording, and 2.4x digital zoom, while later A1SM reporting says the night module received a FLIR thermal imager upgrade.

EO/IR Pod, Electro-optical/infrared airborne sensor pod, Support Equipment

Support EquipmentEO/IR PodElectro-optical/infrared airborne sensor podEO/IR Pod is a support-equipment entry for airborne electro-optical and infrared sensor pods used to find, track, and designate targets from aircraft and UAVs. The page centers on source-backed examples: Canadian WESCAM sensors assessed on Turkish UAVs in Nagorno-Karabakh, Libya, and Syria; Aero's L-39 Skyfox mission fit showing an EO/IR pod; and the U.S. Coast Guard HC-130J's nose-mounted EO/IR pod. Because carrier publications often name the function rather than a specific model, the relationship notes separate identified WESCAM MX-series evidence from generic EO/IR-pod references.

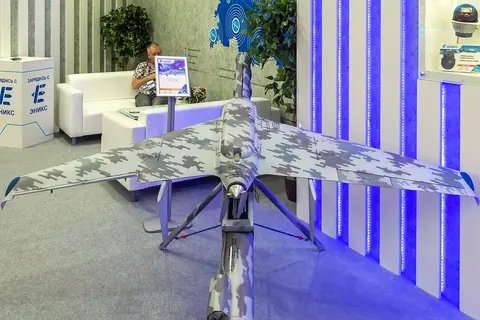

Eleron-10, Short-range reconnaissance UAV system, Aircraft & UAVs
