Munitions

.338 Lapua Magnum cartridge

Also known as
  • .338 LM
  • 338 Lapua Mag.
  • 338 Lapua Magnum
  • 8.6x70mm
  • 8,6 mm x 70

.338 Lapua Magnum is a Finnish 8.6x70 mm centerfire rifle cartridge developed from .338/416 work into a long-range military, law-enforcement, and precision-rifle round. C.I.P. lists Finland as the country of origin, while Lapua and Nammo sources show current tactical, target, armor-piercing, hunting, and special-purpose load families. The linked rifle relationships stay limited to cataloged weapons whose sources document .338 Lapua chambering.

.338 Lapua Magnum cartridge, 8.6 mm long-range centerfire rifle cartridge, Munitions
Image source: .338 Lapua Magnum pic-1.jpg

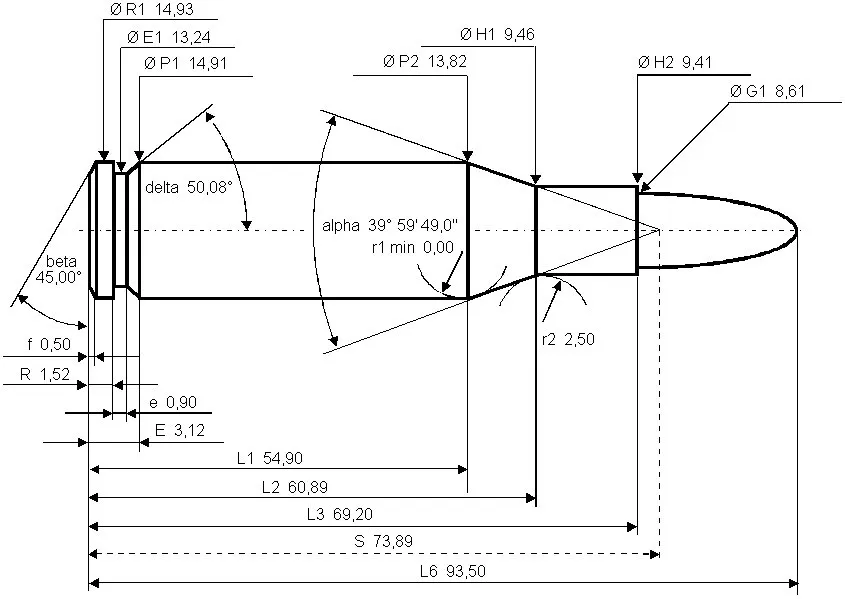

Profile / Specs

Specifications

Cartridge family
.338 Lapua Magnum / 8.6x70 mm
Case type
Rimless bottleneck rifle cartridge
Case length
69.20 mm
Maximum overall length
93.50 mm
Projectile diameter
8.61 mm
Maximum pressure
4200 bar under C.I.P. table values
Proof pressure
5250 bar under C.I.P. PE table value
Reference barrel
C.I.P. table lists 6 grooves, 254 mm twist, 8.38 mm bore diameter, and 8.58 mm groove diameter
Primer
Large Rifle Primer (LRP) in Lapua's 4PH8068 cartridge case
Representative tactical load
Lapua B408 Lock Base FMJBT, 16.2 g / 250 gr, 890 m/s from Lapua's listed load data
Current load families
Lock Base, Scenar, Naturalis, AP/API, Solid, Proof/Drill/Blank
Development And Load Structure

Lapua traces .338 Lapua Magnum from the earlier .338/416 long-range project into a Finnish 8.6 mm x 70 cartridge with revised case, chamber, and internal case structure. Current manufacturer material treats the round as a load family for long-range rifle roles rather than a single fixed projectile.

Standard identity

C.I.P. lists the cartridge as 338 Lapua Mag. with 8,6 mm x 70 as an alternate name and Finland as country of origin.

Source: C.I.P. 338 Lapua Mag. TAB. I.

Precision loads

Lapua and Nammo list Scenar Open Tip Match loads at 16.2 g / 250 gr and 19.4 g / 300 gr, with the 300 gr Lapua page listing an 820 m/s muzzle velocity.

Sources: Lapua 338 Lapua Mag. 300 gr Scenar; Nammo 338 Lapua Magnum Scenar.

Military load spread

Nammo's 8.6 mm series includes Lock Base, Scenar, armor-piercing, armor-piercing incendiary, Solid, proof, drill, and blank entries.

Source: Nammo 8.6mm-series.

Conflict scope

Chambered-rifle combat use is treated as a relationship here, not automatic proof that the cartridge has independent conflict-use sourcing.

The conflict fields remain empty until a source directly documents the cartridge in that exact conflict.

Variants

Lapua and Nammo present .338 Lapua Magnum as a load family rather than a single projectile: match, tactical, armor-piercing, hunting, solid, proof, drill, and blank cartridges appear across current product pages.

VariantConfigurationDesignation notes
Lock Base FMJBTTactical full-metal-jacket boat-tail load

Lapua lists a 16.2 g / 250 gr Lock Base FMJBT factory load, and Nammo describes the Lock Base tail structure as a long-distance, high-pressure, high-velocity configuration.

Sources: Lapua 338 Lapua Mag. Lock Base, Nammo 8.6mm-series

ScenarOpen Tip Match target and tactical load

Lapua lists the 19.4 g / 300 gr Scenar as an Open Tip Match cartridge for tactical and target use; Nammo lists 16.2 g and 19.4 g Scenar projectile weights.

Sources: Lapua 338 Lapua Mag. 300 gr Scenar, Nammo 338 Lapua Magnum Scenar

AP485 / AP529Armor-piercing load family

Lapua's current cartridge category lists AP485 and AP529 .338 Lapua Mag. loads, and Nammo describes armor-piercing .338 Lapua ammunition as intended for extra-hard targets.

Sources: Lapua 338 Lapua Mag. cartridge category, Nammo 8.6mm-series

API526Armor-piercing incendiary load

Lapua's current cartridge category lists an API526 .338 Lapua Mag. load, while Nammo describes the armor-piercing incendiary family as intended for vehicle and structure targets.

Sources: Lapua 338 Lapua Mag. cartridge category, Nammo 8.6mm-series

NaturalisLead-free hunting load

Lapua lists the Naturalis N508 as a 15.0 g / 231 gr lead-free copper hunting load with a 920 m/s muzzle velocity.

Sources: Lapua 338 Lapua Mag. Naturalis

Solid, proof, drill, and blank cartridgesSpecial-purpose and training loads

Nammo lists Solid, Proof, Drill, and Blank cartridges within the 8.6 mm x 70 .338 Lapua Magnum family.

Sources: Nammo 8.6mm-series

Rifles That Fire It

The cartridge is linked here only to cataloged rifle records whose sources identify .338 Lapua Magnum chambering.

Firing weaponWeapon typeFiring evidence
PGW Timberwolf, .338 Lapua Magnum bolt-action sniper rifle, Infantry WeaponsPGW TimberwolfBolt-action sniper rifle

PGW lists the Timberwolf rifle system in .338 Lapua, and Canada described the C14 replacement package as an 8.6 mm medium-range sniper weapon.

Sources: PGW Timberwolf Rifle System, Canadian Forces Award Canadian Sniper Rifle Contract

M24 sniper rifle, Bolt-action sniper rifle, Infantry WeaponsM24 sniper rifleBolt-action sniper rifle

Minot Air Force Base identifies the M24A3 as an alternate M24 configuration that can be chambered in .338 Lapua, extending range over the common 7.62 NATO version.

Sources: The M24 Sniper Weapon System

Timeline

.338 Lapua Magnum cartridge Key Events

  1. .338/416 precursor work

    Lapua traces the caliber's roots to .338/416 work intended for a long-range U.S. military target-rifle and sniper-rifle requirement.

    Sources: Lapua 338 Lapua Magnum story pt 1

  2. Lapua bullets and cases completed

    Lapua says it finished the first bullets and cases for the .338/416 cartridge in 1985 before later dimensional changes led to the .338 Lapua Magnum.

    Sources: Lapua 338 Lapua Magnum story pt 1

  3. Quantico competition result

    Lapua says a .338/416 cartridge using Lapua bullet and case components won a 1,000-yard Navy rifle competition at Quantico before the U.S. selection path moved elsewhere.

    Sources: Lapua 338 Lapua Magnum story pt 1

  4. First .338 Lapua Magnum test lot

    Lapua says the first test lot of .338 Lapua Magnum ammunition was produced in 1988.

    Sources: Lapua 338 Lapua Magnum story pt 2

  5. C.I.P. table date

    C.I.P.'s 338 Lapua Mag. table lists Finland as the country of origin and 8,6 mm x 70 as an alternate name for the cartridge.

    Sources: C.I.P. 338 Lapua Mag. TAB. I

  6. Scenar bullet introduced

    Lapua's development history says the HPBT Scenar bullet was introduced in 1996, expanding the cartridge family beyond the original Lock Base work.

    Sources: Lapua 338 Lapua Magnum story pt 2

Media

.338 Lapua Magnum cartridge Videos

.338 Lapua Magnum cartridge Images

.338 Lapua Magnum cartridge, 8.6 mm long-range centerfire rifle cartridge, Munitions - view 1
Source: .338 Lapua Magnum pic-1.jpg
